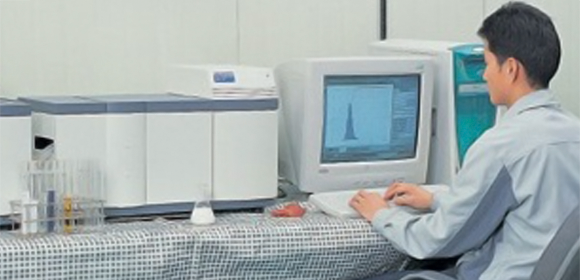

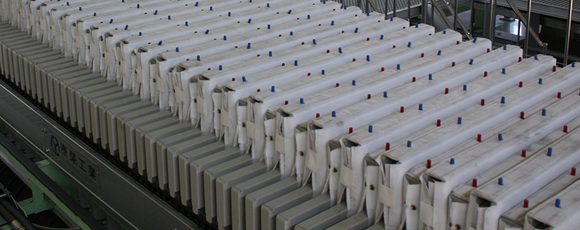

Based on extensive filter press application experience, Taeyoung Filtration System has experience in applying filter cloth optimized to site conditions, and has various products optimized for filter plate size, sludge properties, and particle size required by customers. Upon request from the customer, we analyze the sludge particle size and chemical properties in our analysis room to supply optimized products.
| Max. Temp. ℃ |
Acids | Alkalis | Oxiding Agents |
Hydrolysis | |
|---|---|---|---|---|---|
| Polypropy lene |
90 | 1 | 1 | 3 | 2 |
| Polyester | 90 | 2 | 3 - 4 | 2 - 3 | 4 |
| Polyamide | 100 | 4 | 1 | 3 | 2 |
| PVDF | 120 | 1 | 3 | 2 | 1 |
| E-CTFE | 140 | 1 | 1 | 1 | 1 |
| ETEE | 150 | 1 | 1 | 1 | 1 |
| PPS | 190 | 1 | 1 | 2 - 3 | 2 |
| PEEK | 230 | 1 | 1 | 1 | 1 |
| PTFE | 250 | 1 | 1 | 1 | 1 |

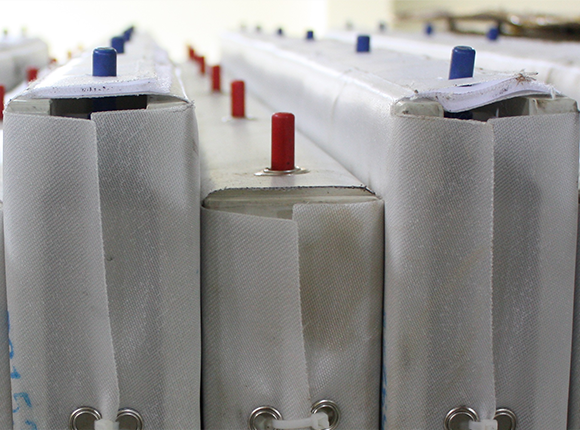

Edge for sealing plate

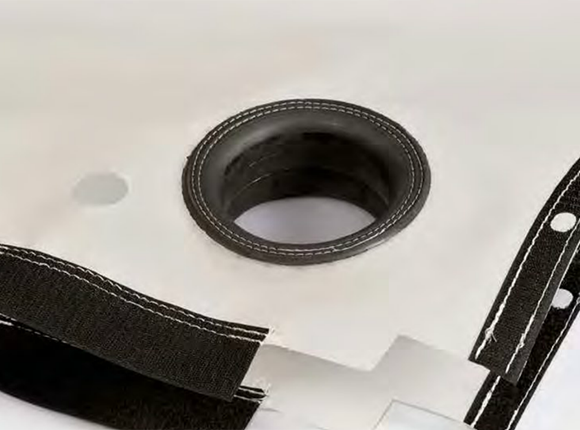

Eyelet

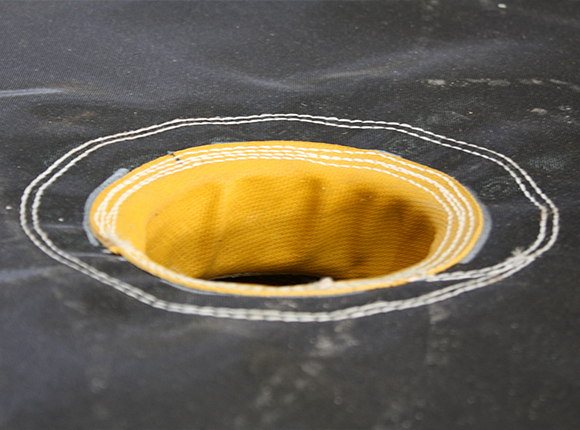

Coating neck

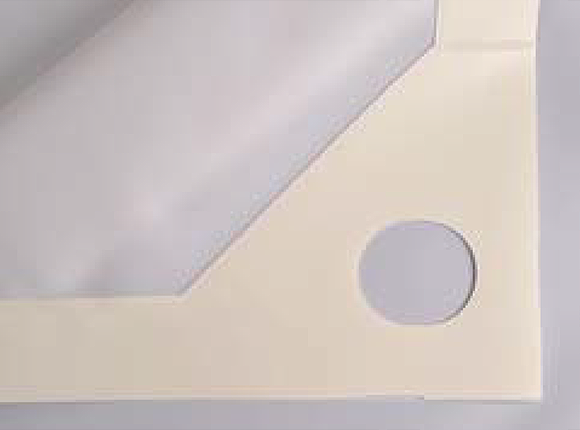

Edge sealing
