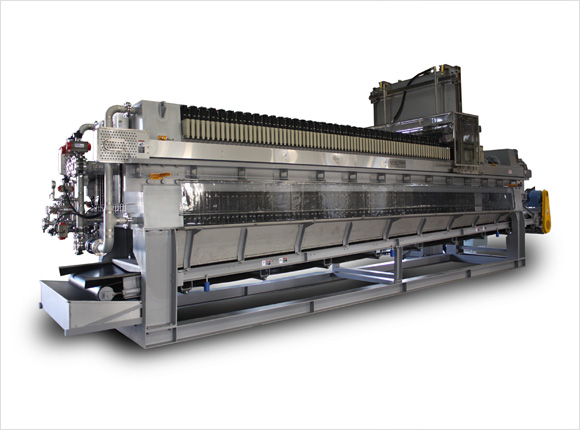

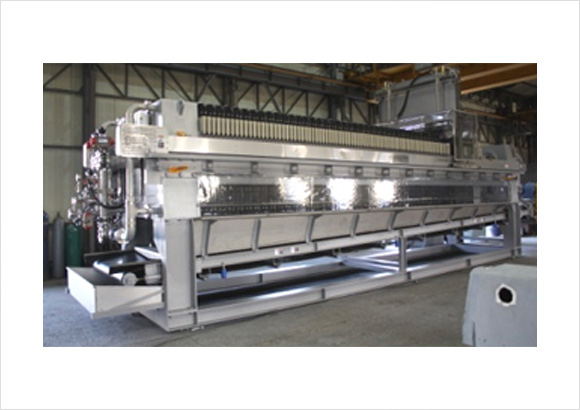

压滤机

(株)Taeyoung Filtration System的全自动压滤机是排出清澈的过滤液的同时，生产水分含量最低的滤饼的最佳解决方案。
为了在所有产业现场实现最佳性能，Taeyoung压滤机以刚性机身结构、精密的设计、操作方便以及针对恶劣操作环境的操作方案组成，并有多种尺寸的产品线。
以积累30年的经验为基础，Taeyoung压滤机采用了最先进的自动化系统。
通过PLC编程，实现从全自动滤饼分离、全自动滤布清洗、滤饼自动排出到多功能过滤辅助工序及监控系统的高性能、全自动操作。

产品详细

  • Side-bar construction, filter plate size range available from
    470 x 470mm to 1500 x 1500 mm

  • Low and high pressure : 7 bar, 15 bar

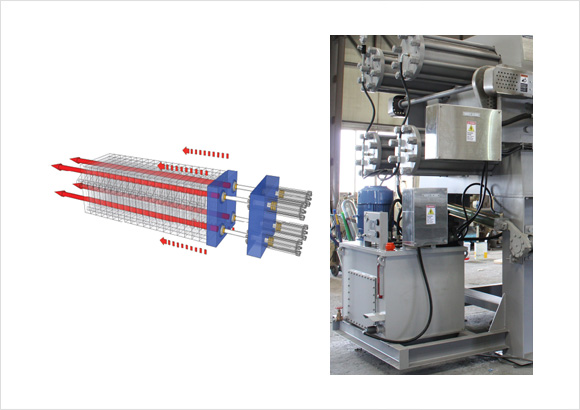

  • Electric closure of filter plate :
    - 1500 mm, 1200 mm : 4-head
    - 1000 mm : 1-head

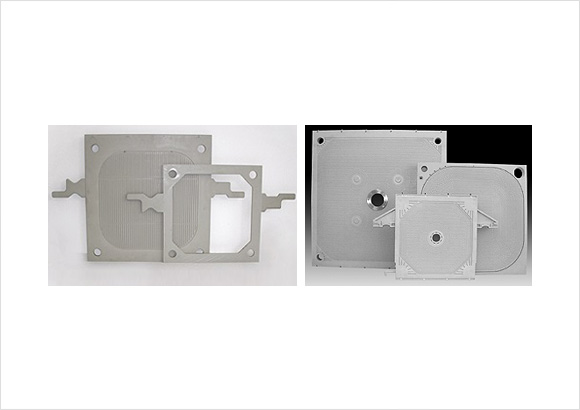

  • Filter plate : Membrane mixed pack or Recessed plates

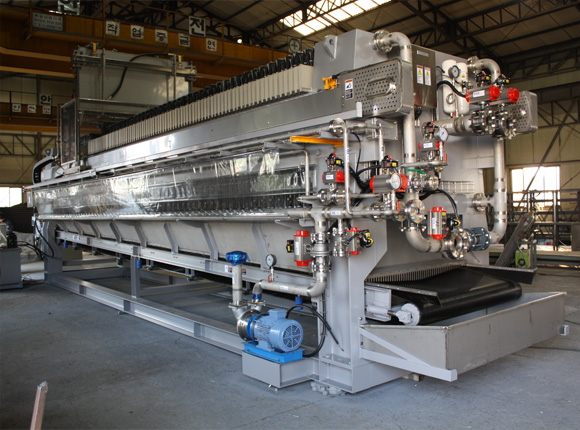

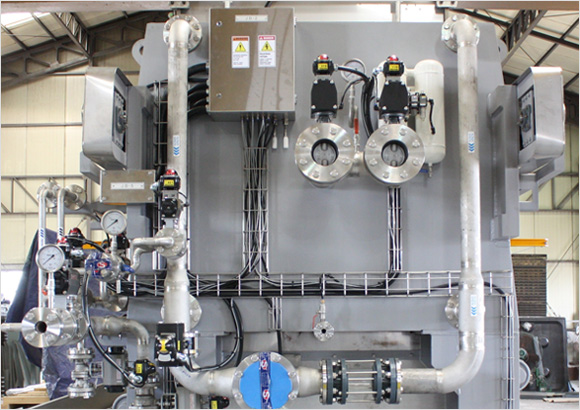

  • Manifold and Auto valves : Slurry feed and Filtrate discharge, Ancillary process

  • Filtration process :

  • - Sludge feeding - Squeezing - Line blowing
    - Core drain - Cake blowing - Pre-coating
    - Cake washing - Core Washing & blowing

  • Automatic Plate shifting device

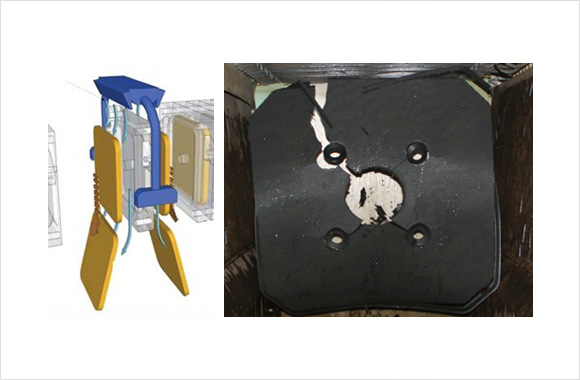

  • Automatic cake discharge device by air-jet

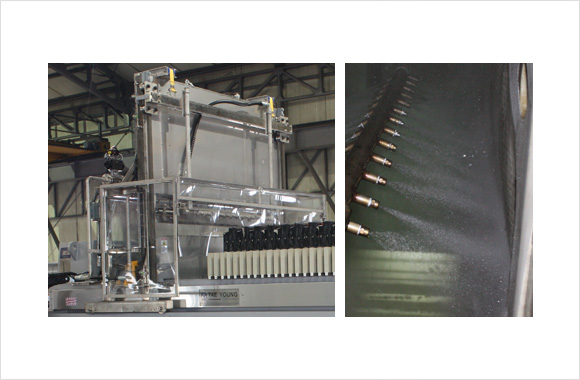

  • Automatic cloth washing device

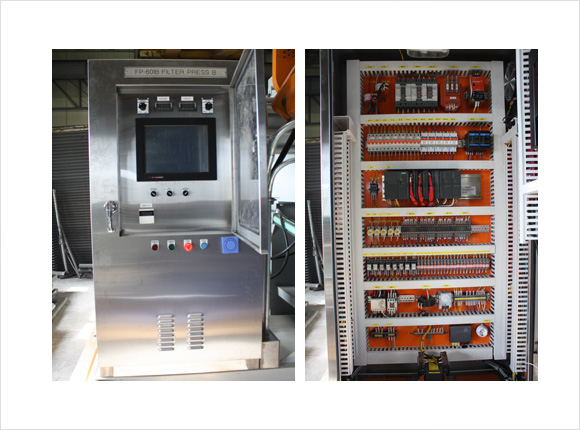

  • PLC control system (with touch PC) Manual / Semi-auto / Full-auto operating

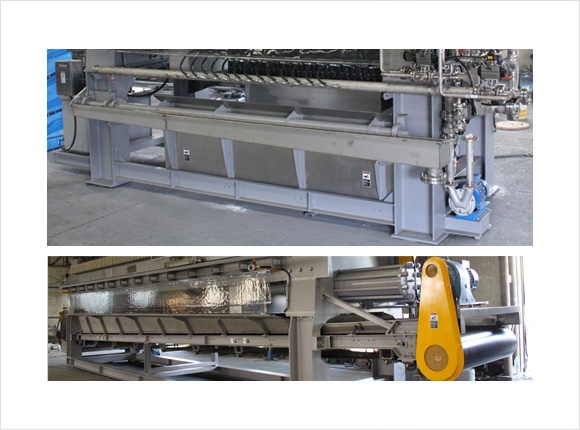

  • Automatic drip tray / belt conveyor

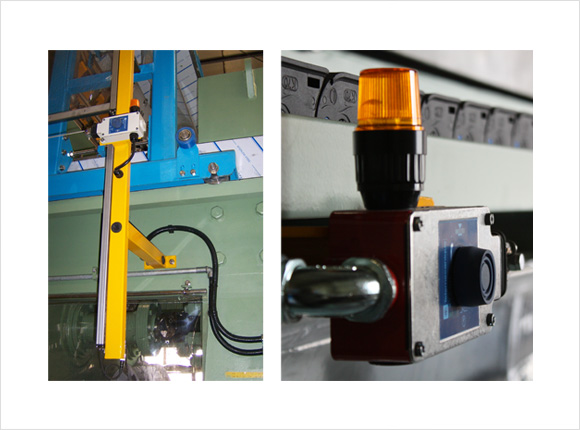

  • Safety light curtain / trip wires

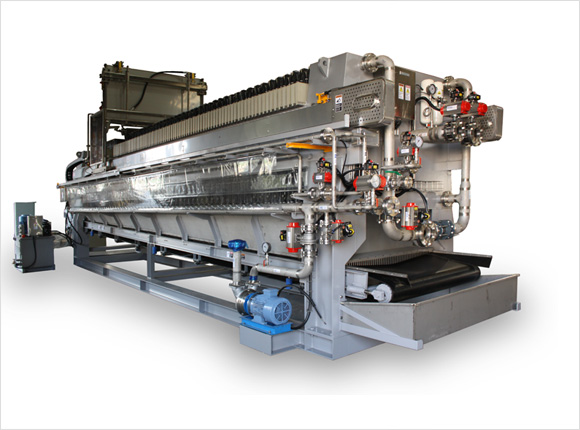

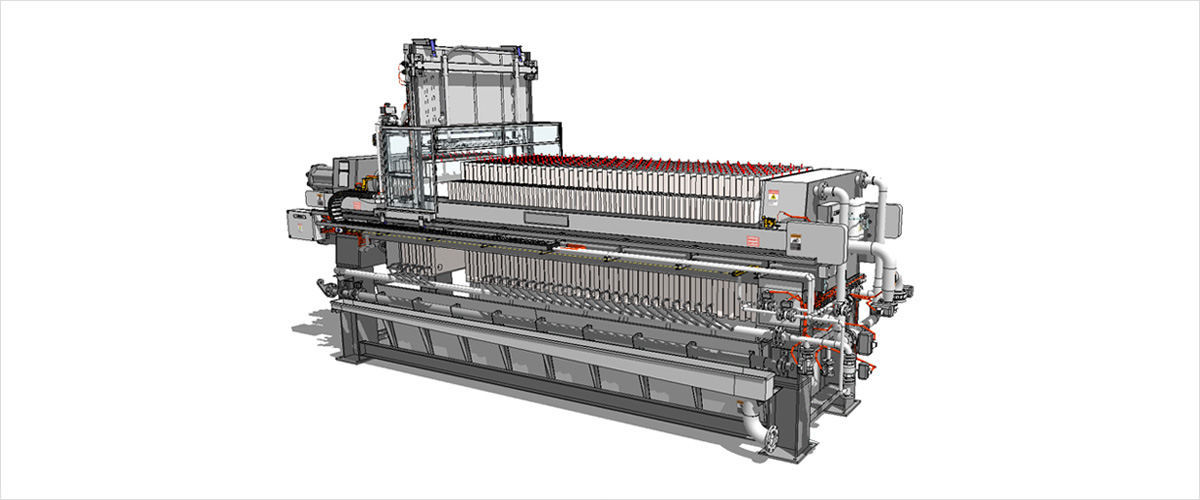

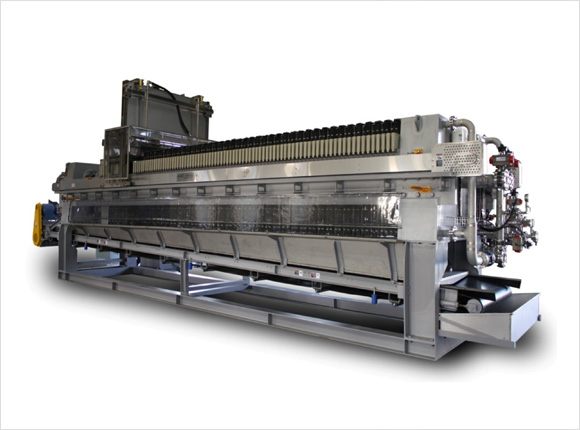

产品图像
