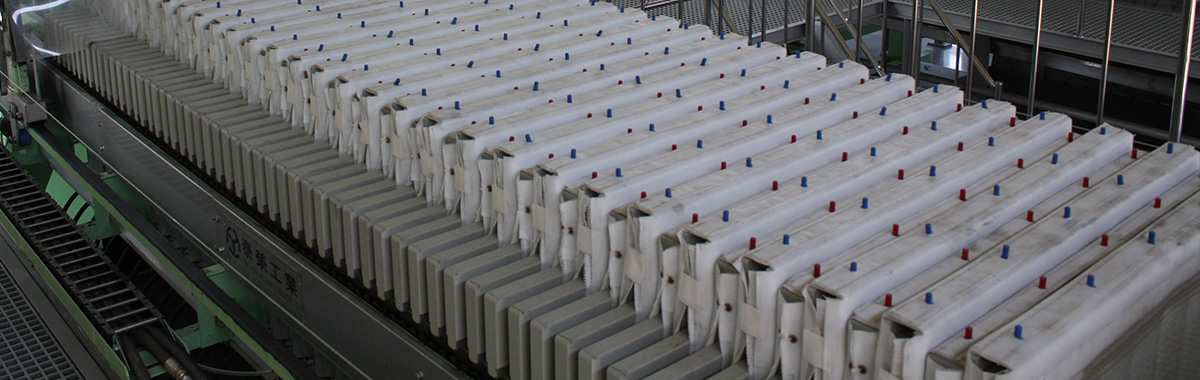

Based on extensive filter press application experience, Taeyoung Filtration System has experience in applying
filter cloth optimized to site conditions,
and has various products optimized for filter plate size,
sludge properties, and particle size required by customers.

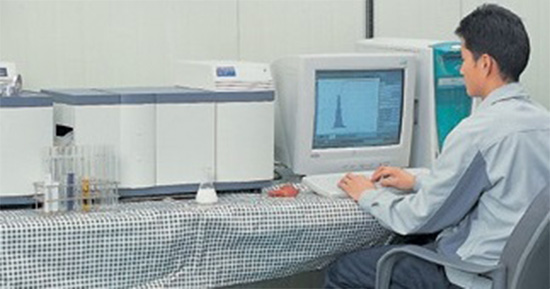

Upon request from the customer, we analyze the sludge particle size and
chemical properties in our analysis room to supply optimized products.
Filter media selection > Temperature / Chemical resistence
| Max. Temp. ℃ | Acids | Alkalis | OxidingAgents | Hydrolysis | |
|---|---|---|---|---|---|
| Polypropylene | 90 | 1 | 1 | 3 | 2 |
| Polyester | 90 | 2 | 3 - 4 | 2 - 3 | 4 |
| Polyamide | 100 | 4 | 1 | 3 | 2 |
| PVDF | 120 | 1 | 3 | 2 | 1 |
| E-CTFE | 140 | 1 | 1 | 1 | 1 |
| ETEE | 150 | 1 | 1 | 1 | 1 |
| PPS | 190 | 1 | 1 | 2 - 3 | 2 |
| PEEK | 230 | 1 | 1 | 1 | 1 |
| PTFE | 250 | 1 | 1 | 1 | 1 |
Filter media selection > Type of fiber
-

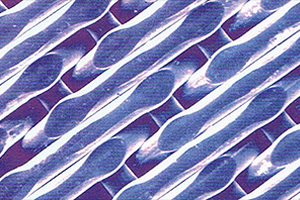

Monofilament
-

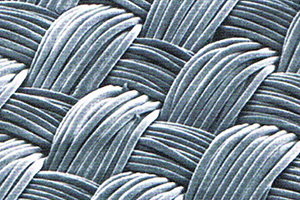

Multifilament
-

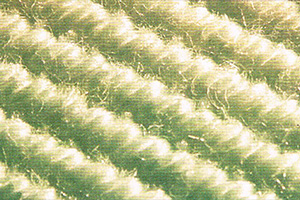

Stable fiber
Filter design selection
-
Edge for sealing plate
-

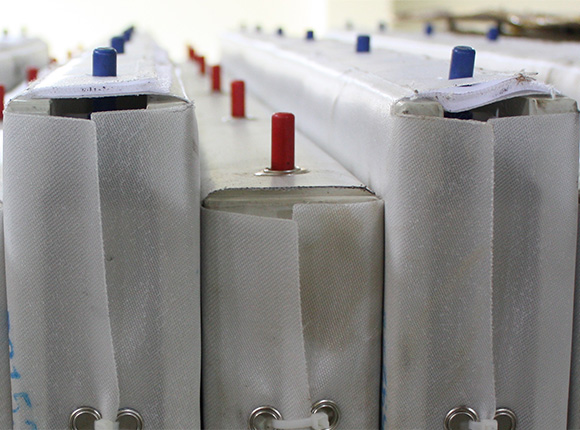

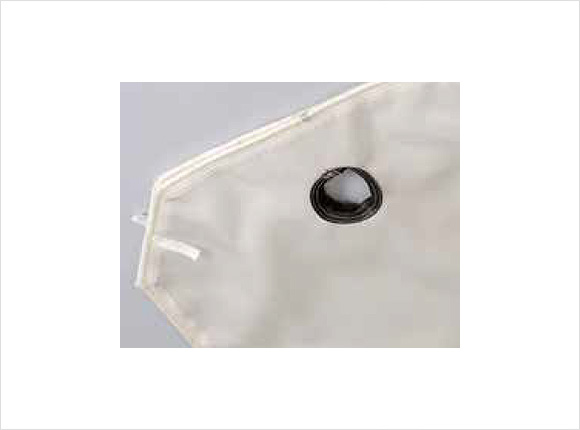

Eyelet
-

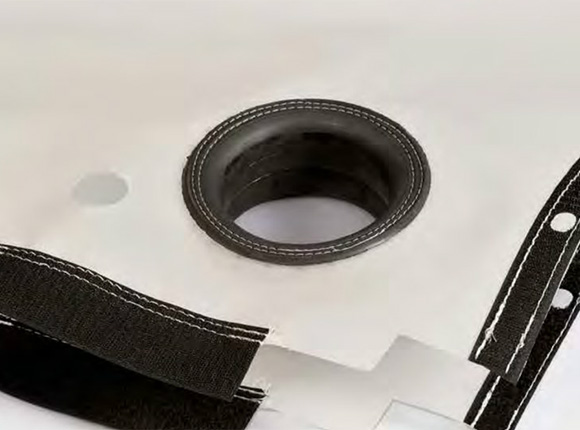

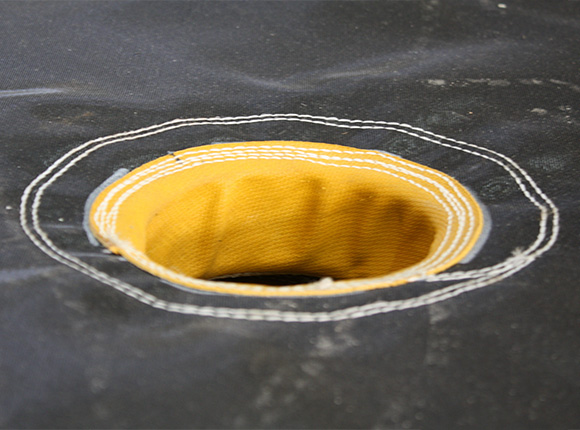

Coating neck
-

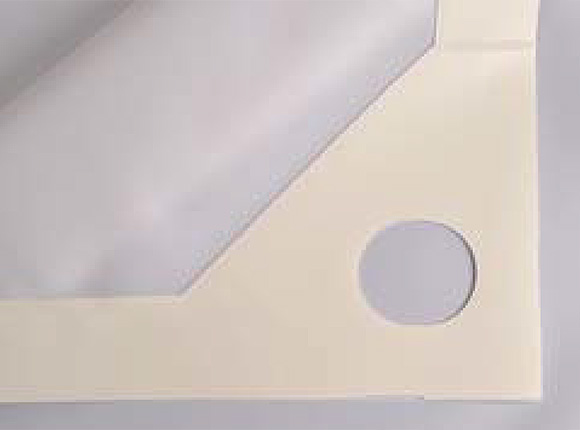

Edge sealing
