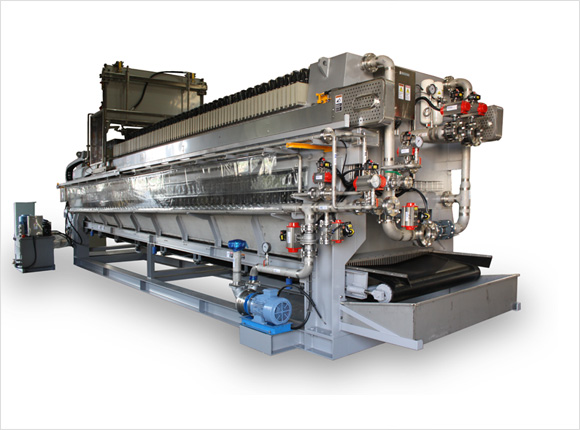

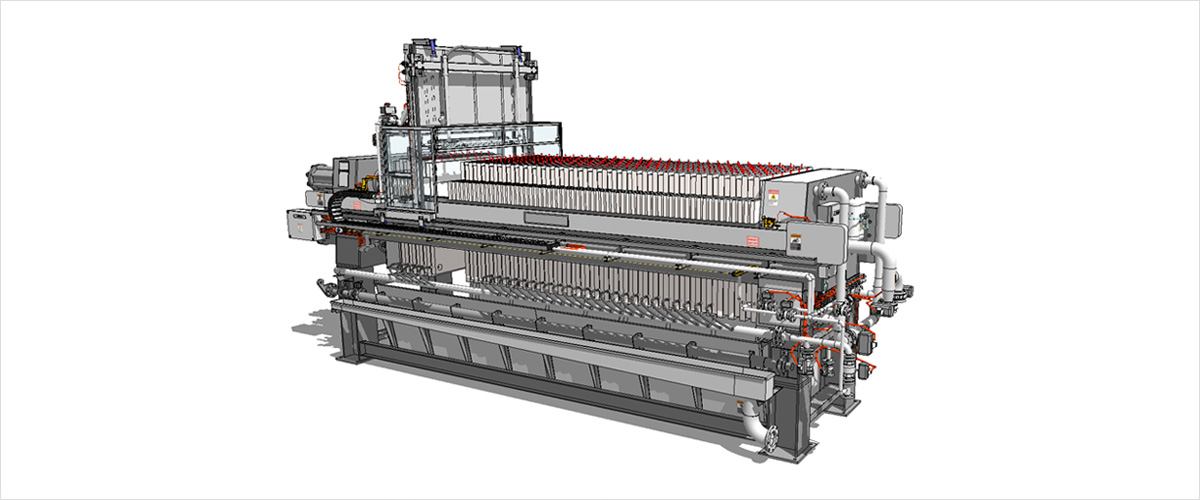

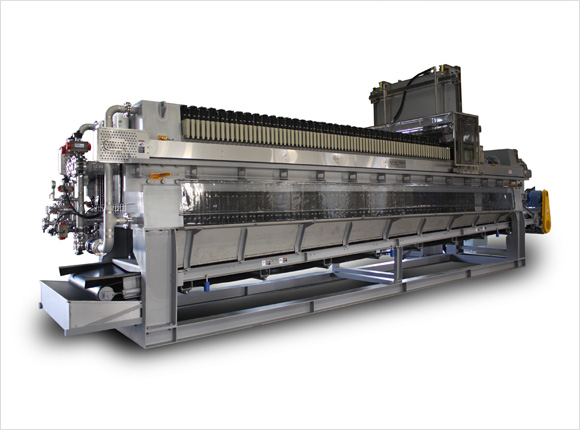

The fully automatic filter press of Taeyoung Filtration System is the optimal solution for producing cakes
with the lowest moisture content while discharging clear filtrate.
In order to realize the best performance in all industrial fields, Taeyoung filter press is composed of a rigid body structure, precise design,
operation convenience, and operation options for poor operating environment, as well as a product line of various sizes.
Based on 30 years of accumulated know-how, Taeyoung filter press is applying the most advanced automation system.
It is configured to enable high-performance, fully automatic operation from fully automatic cake detaching, fully automatic filter cloth cleaning,
and automatic cake discharging to multi-functional filtration auxiliary process and monitoring system by PLC programming.
with the lowest moisture content while discharging clear filtrate.
In order to realize the best performance in all industrial fields, Taeyoung filter press is composed of a rigid body structure, precise design,
operation convenience, and operation options for poor operating environment, as well as a product line of various sizes.
Based on 30 years of accumulated know-how, Taeyoung filter press is applying the most advanced automation system.
It is configured to enable high-performance, fully automatic operation from fully automatic cake detaching, fully automatic filter cloth cleaning,
and automatic cake discharging to multi-functional filtration auxiliary process and monitoring system by PLC programming.
Product details
Side-bar construction, filter plate size range available from
470 x 470mm to 1500 x 1500 mmLow and high pressure : 7 bar, 15 bar

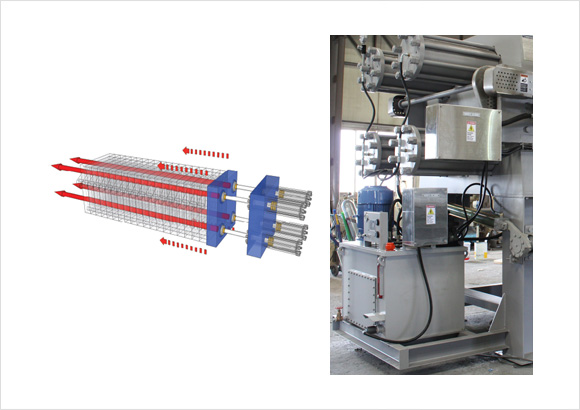

Electric closure of filter plate :
- 1500 mm, 1200 mm : 4-head
- 1000 mm : 1-head

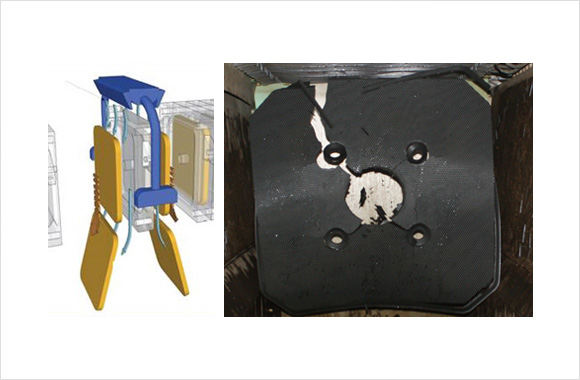

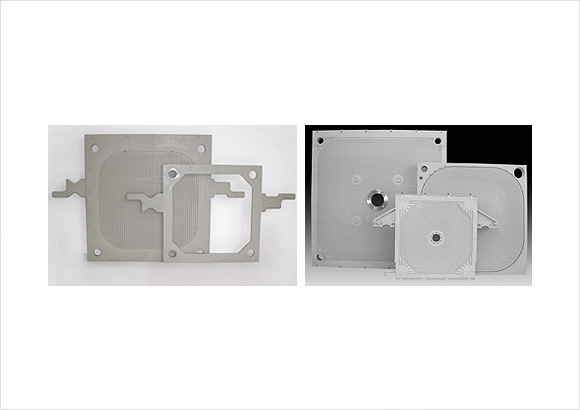

Filter plate : Membrane mixed pack or Recessed plates

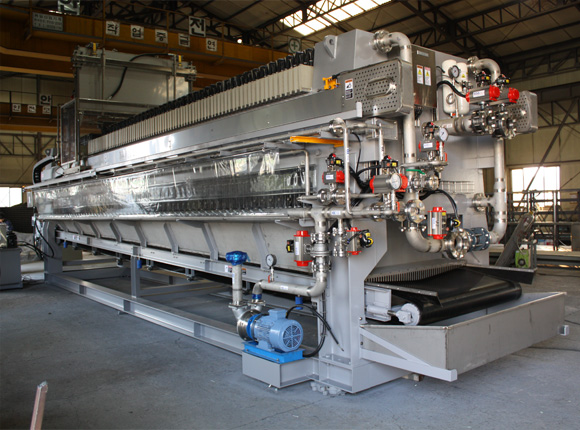

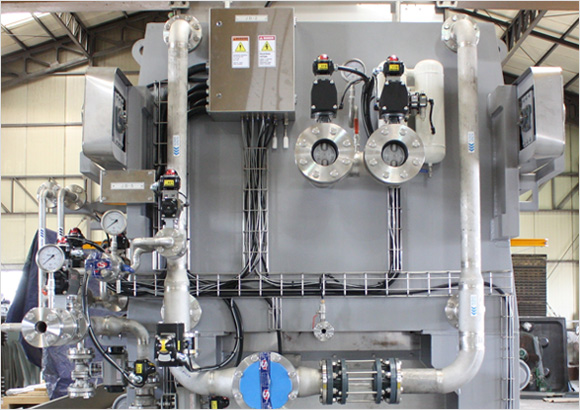

Manifold and Auto valves : Slurry feed and Filtrate discharge, Ancillary process
Filtration process :
-
- Sludge feeding - Squeezing - Line blowing - Core drain - Cake blowing - Pre-coating - Cake washing - Core Washing & blowing
Automatic Plate shifting device
Automatic cake discharge device by air-jet

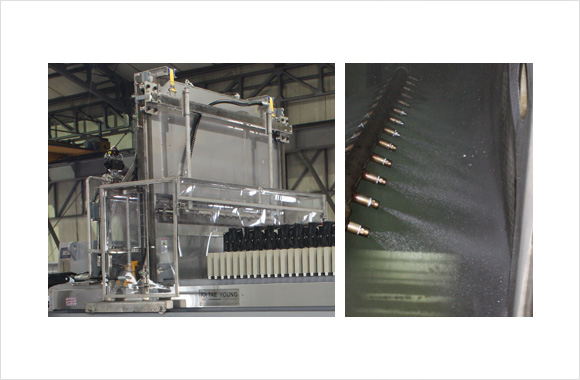

Automatic cloth washing device
PLC control system (with touch PC) Manual / Semi-auto / Full-auto operating

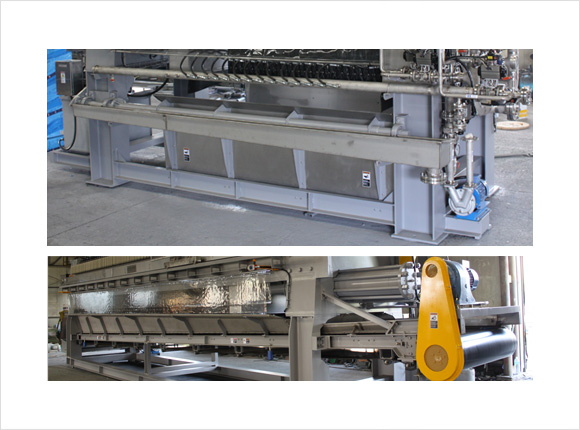

Automatic drip tray / belt conveyor

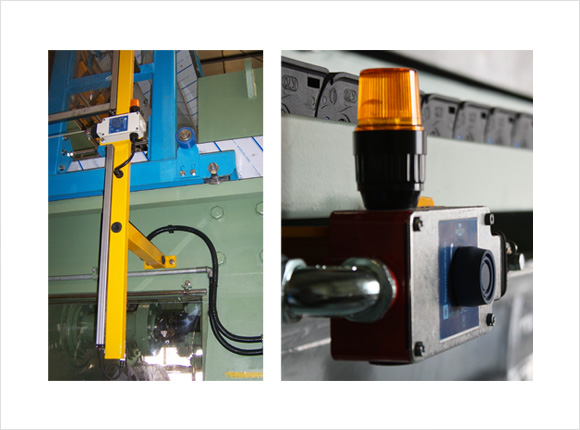

Safety light curtain / trip wires
